-Official product page link-

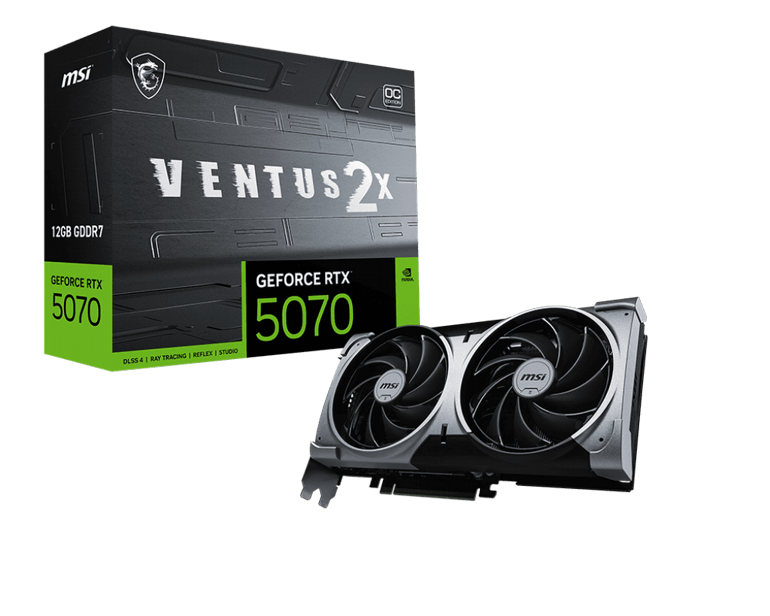

GeForce RTX™ 5070 12G Ventus 2X OC
- FEATURES -
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5070
- Integrated with 12GB GDDR7 192bit memory interface

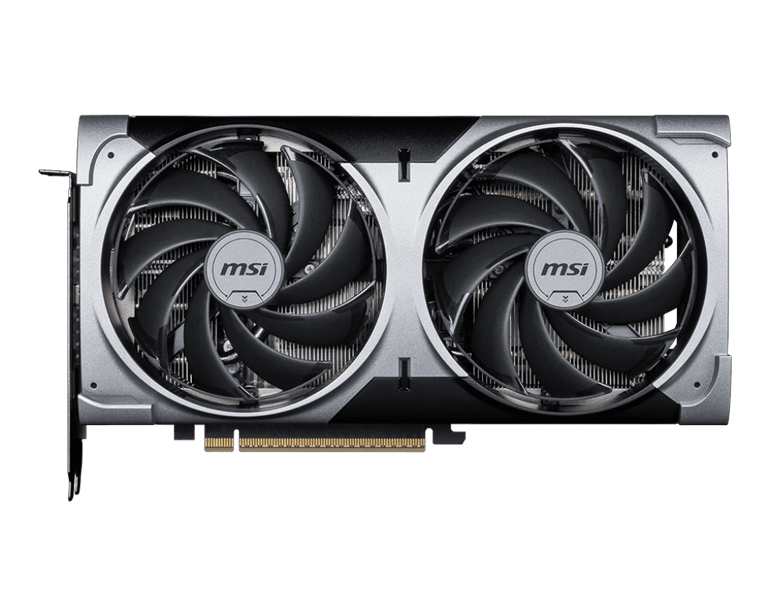

- DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
TORX FAN 5.
Torx fan 5.0 enhances airflow and pressure through an improved fan design. Ring arcs link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans.
NICKEL-PLATED COPPER BASEPLATE
Heat from the GPU and memory modules is quickly captured by a solid nickel-plated copper baseplate and rapidly transferred to the core pipes.
KEEPING THE CORE COOL - CORE PIPES
Core Pipes are engineered with a square shape contact area for maximum heat capture where it engages the GPU baseplate, then dispersing heat across the heatsink for optimal thermal management.

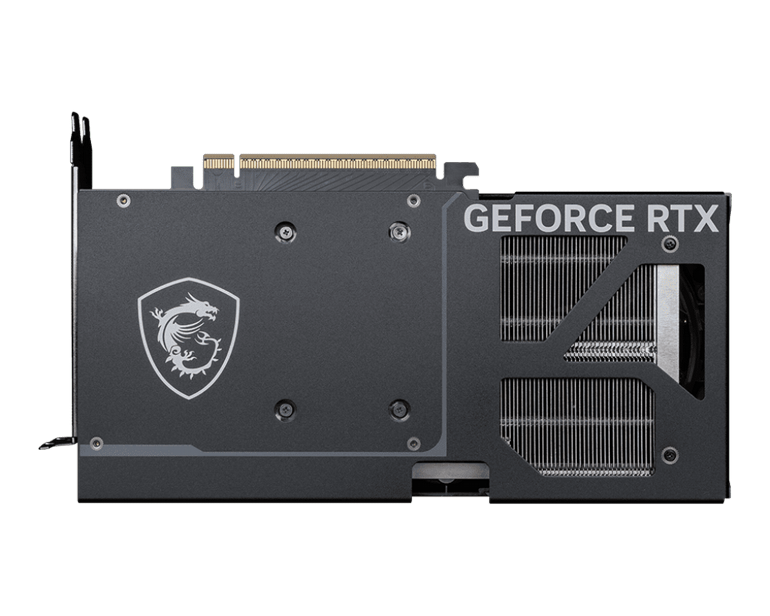

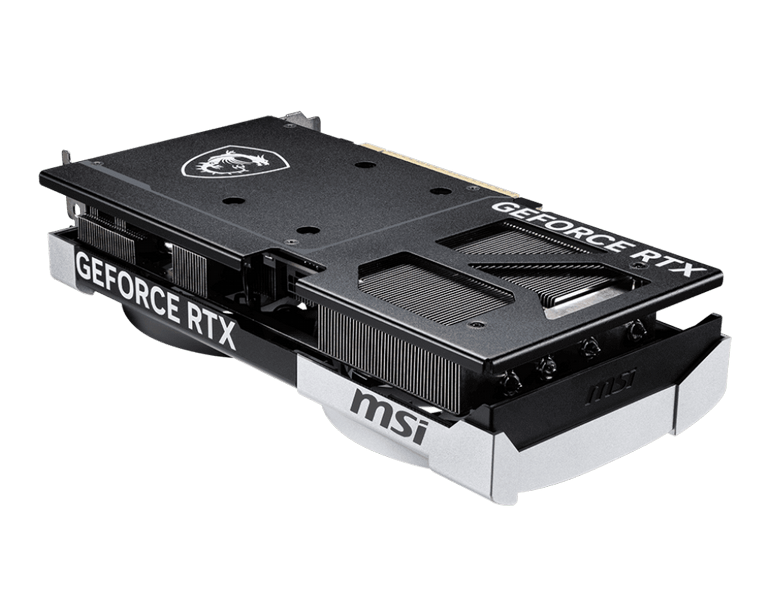

METAL BACKPLATE
A sturdy metal backplate helps to strengthen the graphics card while airflow vents allow exhaust air to pass through, effectively reducing excess heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
-
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2557MHz (MSI Center)
Boost: 2542 MHz
- SFF-Ready Enthusiast GeForce Card
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

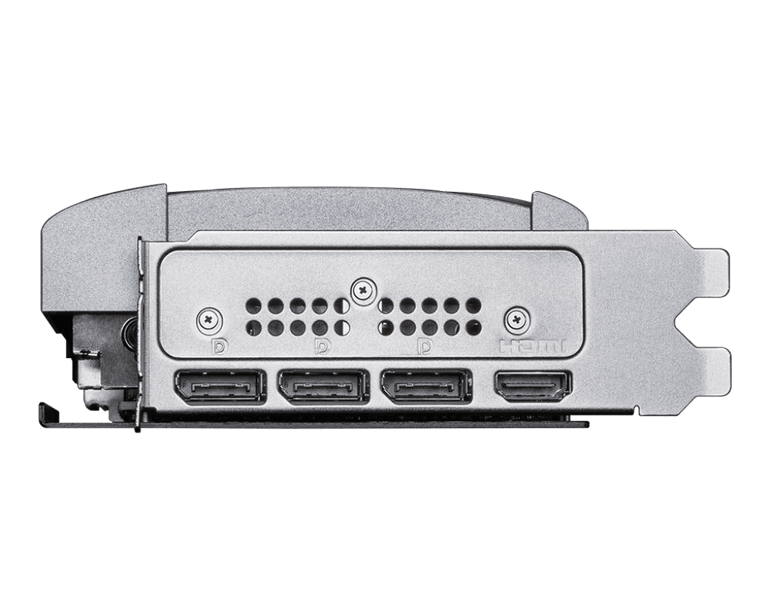

-Connectivity-
DisplayPort 2.1b * 3
HDMI™ * 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
-SPECS-
Warranty : 3 Years
Brand : MSI
Model :
GeForce RTX™ 5070 12G VENTUS 2X OC
GPU :
NVIDIA® GeForce RTX™ 5070
CUDA cores : 6144 Units
Video Memory : 12GB GDDR7
Memory Bus : 192-bit
Core Clock : Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz
Memory Clock : 28 Gbps
PCI Express : Gen 5.0
Recommended Power Supply : 650W
Power Consumption : 250W

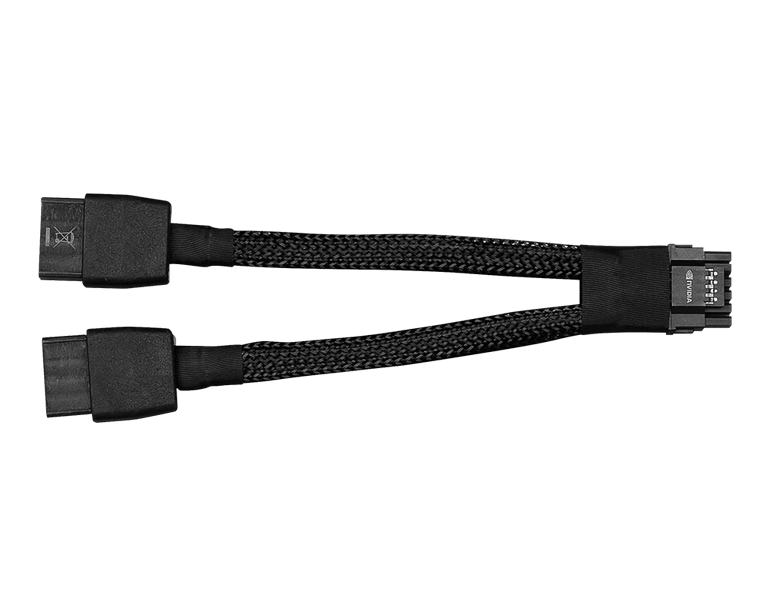

Power Input : 16pin x 1
DirectX : 12 API
OpenGL : 4.6
Multi Display Capability : Quad Display
HDCP Support : Yes
G-SYNC Technology : Yes
Digital Max. Resolution : 7680 x 4320
Dimensions : L=236 W=126 H=40 mm
Weight : 774g / 1149g
