Overview

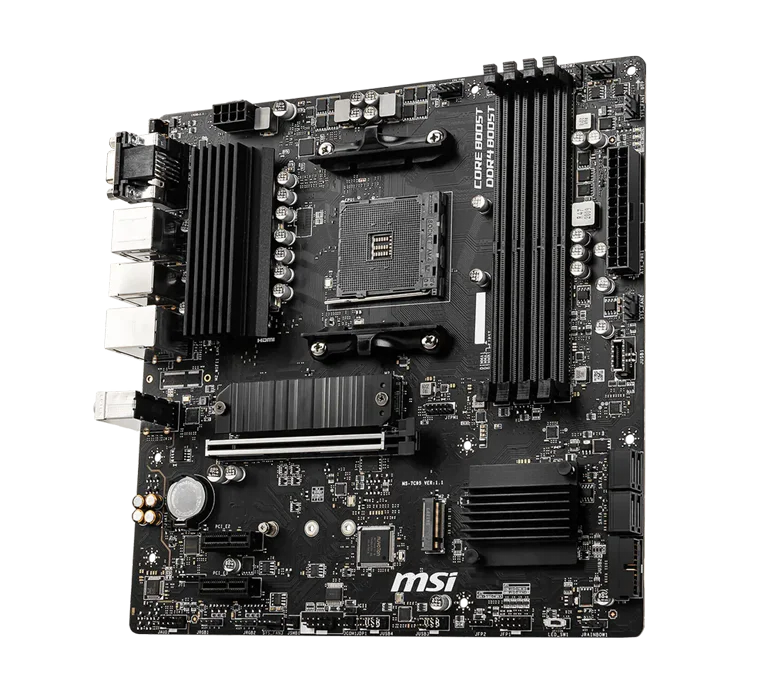

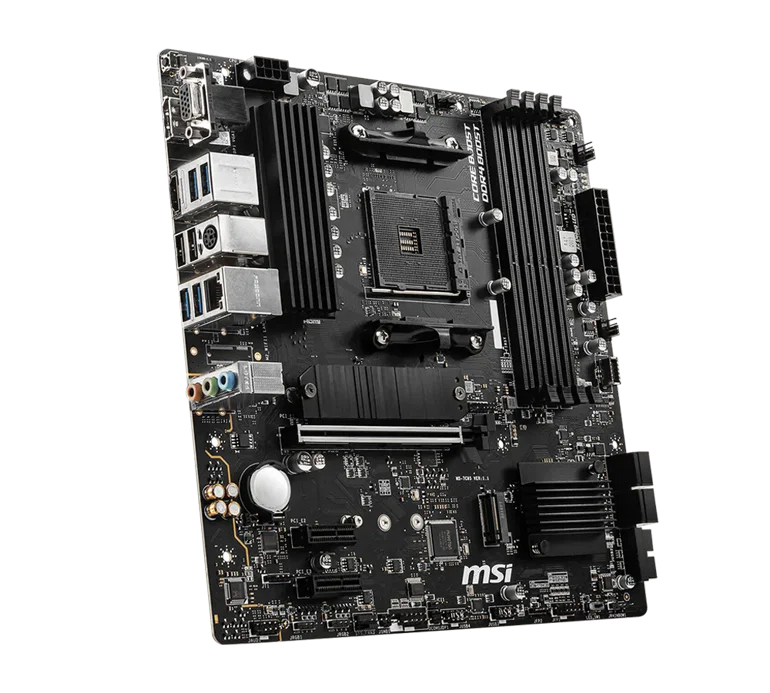

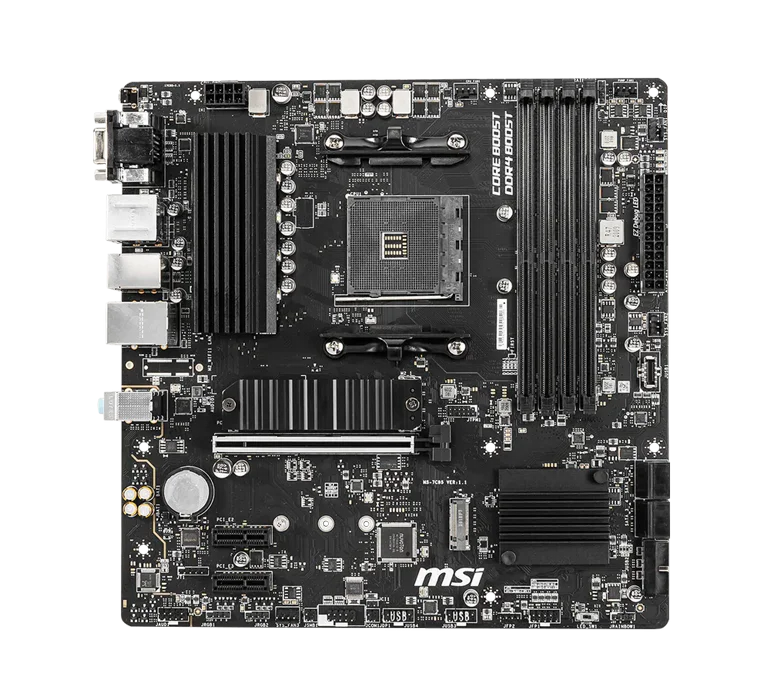

The MSI B550M PRO-VDH is a professional-oriented micro-ATX motherboard designed to support AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors. Part of the PRO series, this motherboard is built to provide a stable and high-quality foundation for any workstation, featuring advanced cooling, high-speed storage support, and reliable power delivery to enhance professional productivity.
Key Features
-
Core Boost & DDR4 Boost: Premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability.
-
Lightning Gen 4 Solution: The latest Gen 4 PCI-E and M.2 solution with up to 64Gb/s bandwidth for maximum transfer speed.
-
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
Flash BIOS Button: Simply use a USB key to flash any BIOS in seconds, without installing a CPU, memory, or graphics card.
-
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive audio experience.
-
Copper Thickened PCB: An enhanced PCB design improves heat dissipation and performance reliability.
-FEATURES-
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
-SPECS-
Warranty : 3 years
Brand : MSI
Model : B550M PRO-VDH
Form Factor : mATX244mmx244mm
Operating system : Support for Windows® 11 64-bit, Windows® 10 64-bit
CPU :
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset : AMD B550
Onboard Graphics :
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio :
Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
Ethernet :
- Realtek® RTL8111HN 1Gbps LAN
-Storage Interface-
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0/3.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From B550 Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
Memory :
4x DDR4 UDIMM, Maximum Memory Capacity 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Slot :
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2x PCIe 3.0 x1 slots

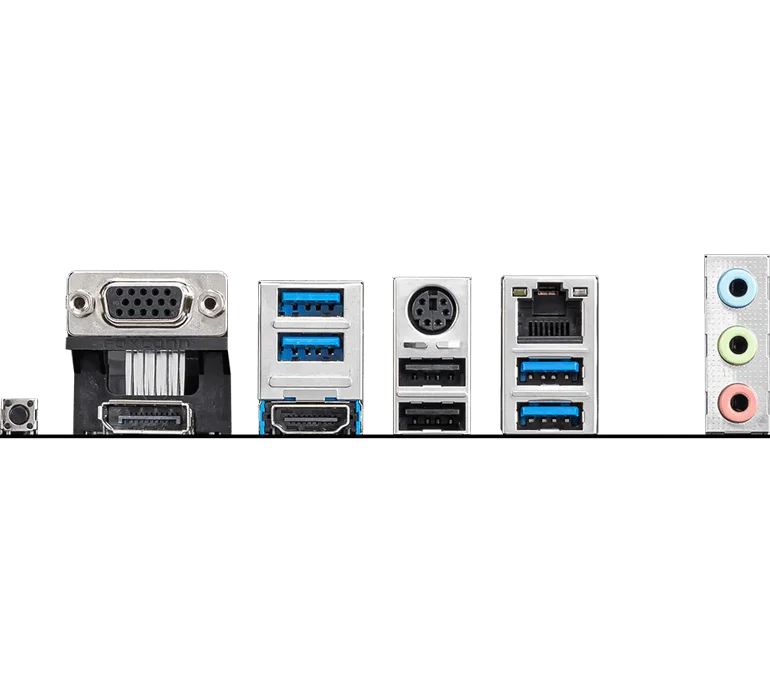

Back I/O Ports:
1. VGA
2. USB 3.2 Gen 1 5Gbps Type-A
3. Keyboard / Mouse
4. LAN
5. Flash BIOS button
6. DisplayPort
7. HDMI™
8. USB 2.0
9. USB 3.2 Gen 1 5Gbps Type-A
10. HD Audio Connectors
-Internal I/O Connectors-
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
