-FEATURES-

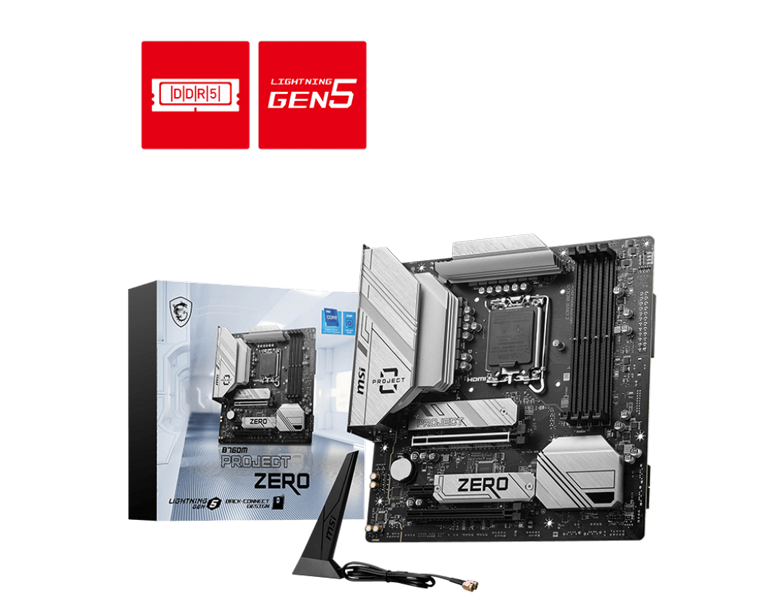

- The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.
-

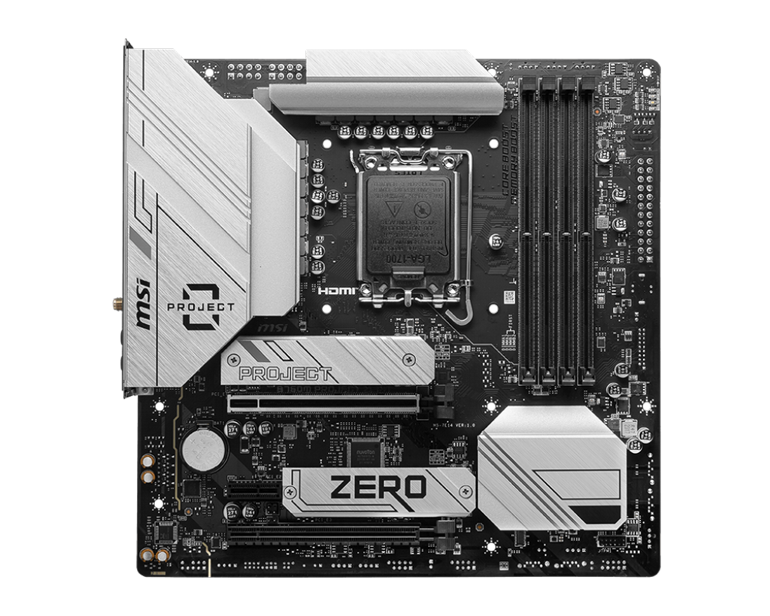

ABSOLUTE SIMPLICITY B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
-

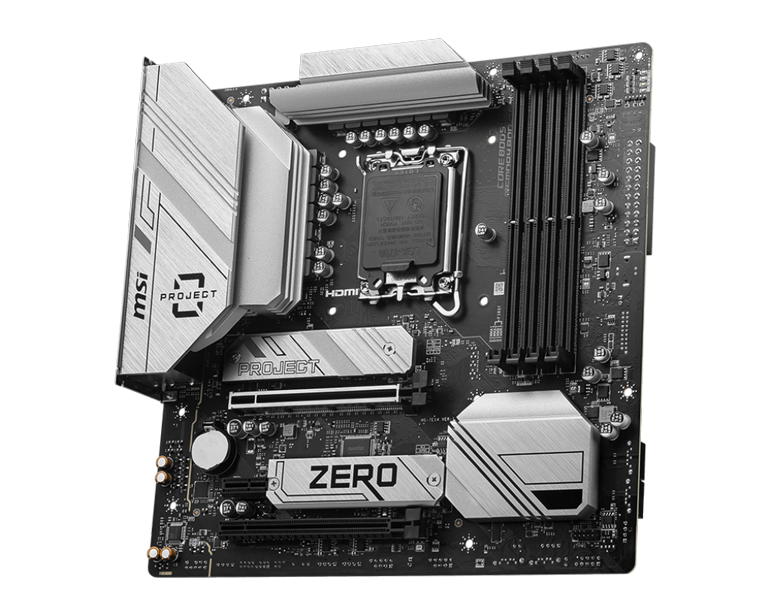

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
-
Heavy Plated VRM Heatsink. The VRM heatsink covers the upper MOS and helps dissipate the heat.
-
M.2 Shield Frozr. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
7W/mK Thermal Pad & Additional Choke Pad. High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
-
LIGHTNING GEN 5 PCI-E. Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
-
SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
-
REINFORCED, HEAVY SOLDERED CONNECTIONS. Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
-
The Isolated Analogy Structure for Audio Connectors.To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
-
COMPATIBLE CASES MAG PANO M100R PZ
-SPECS-
Warranty : 3 years
Brand : MSI
Model : B760M PROJECT ZERO
Form Factor : mATX 243.84mm x 243.84mm
Operating system : Support for Windows® 11 64-bit, Windows® 10 64-bit
CPU :
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Chipset : Intel® B760 Chipset
Onboard Graphics :
1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio :
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Supports S/PDIF output
Ethernet :
Wireless:
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
-Storage Interface-
2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory :
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Slot :
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

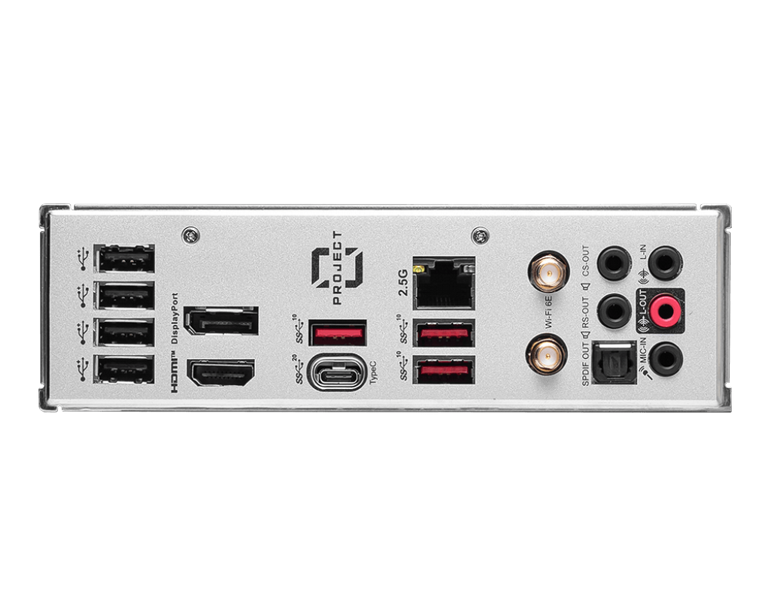

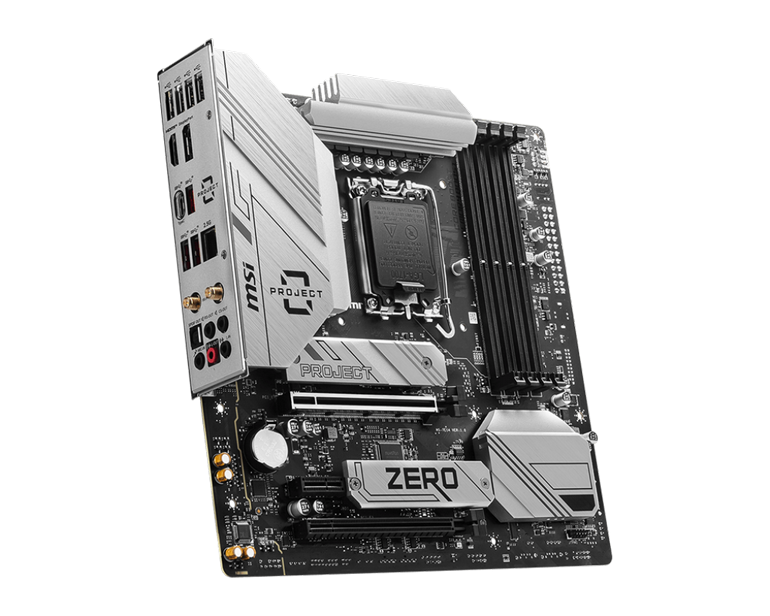

Back I/O Ports:
- 4 x USB 2.0
- DisplayPort 1.4
- 3 x USB 10Gbps Type-A
- 2.5G LAN Port
- Wi-Fi / Bluetooth Antenna
- HD Audio Connectors
- HDMI™ 2.1 Port
- USB 20Gbps Type-C
- Optical S/PDIF OUT
-Internal I/O Connectors-
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
