-FEATURES-
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
-SPECS-
Warranty : 3 years
Brand : MSI

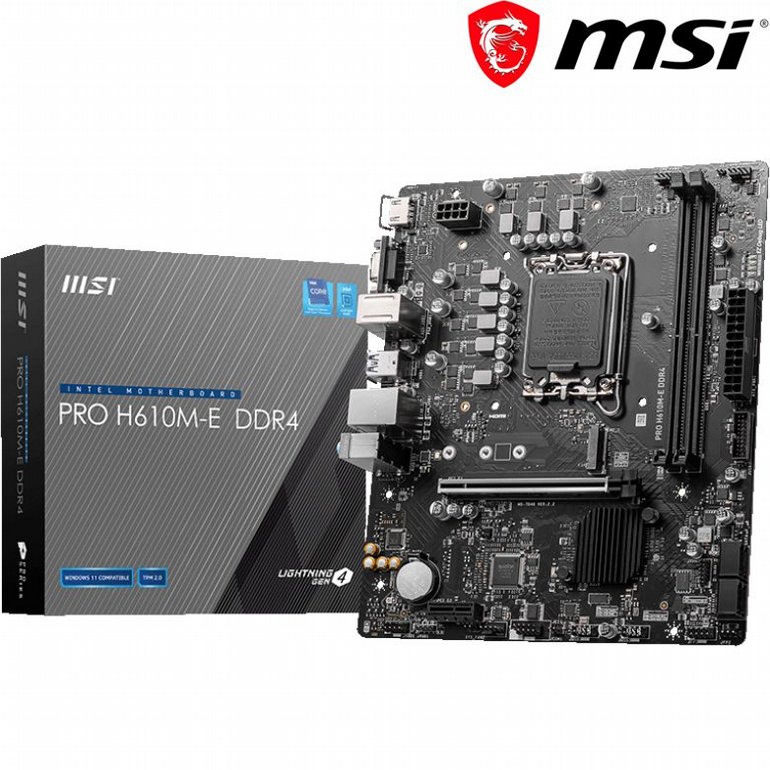

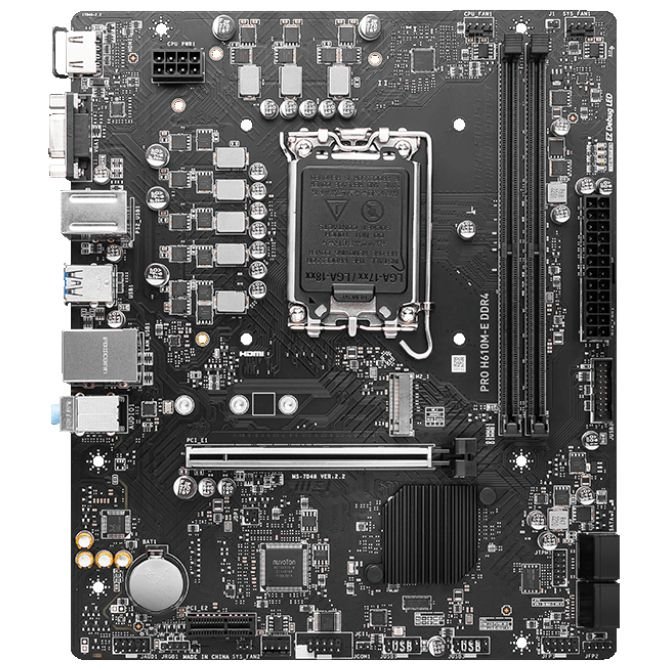

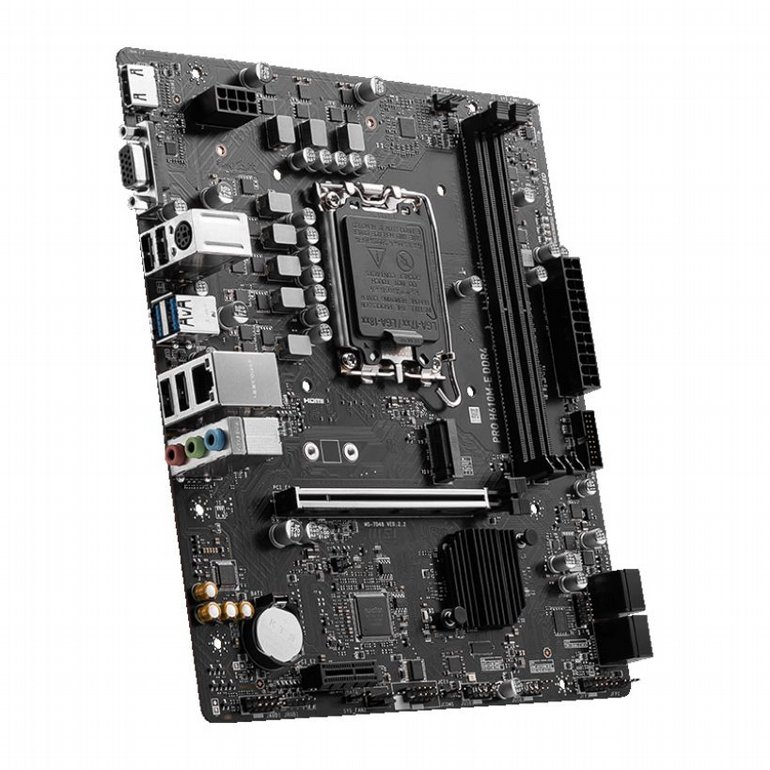

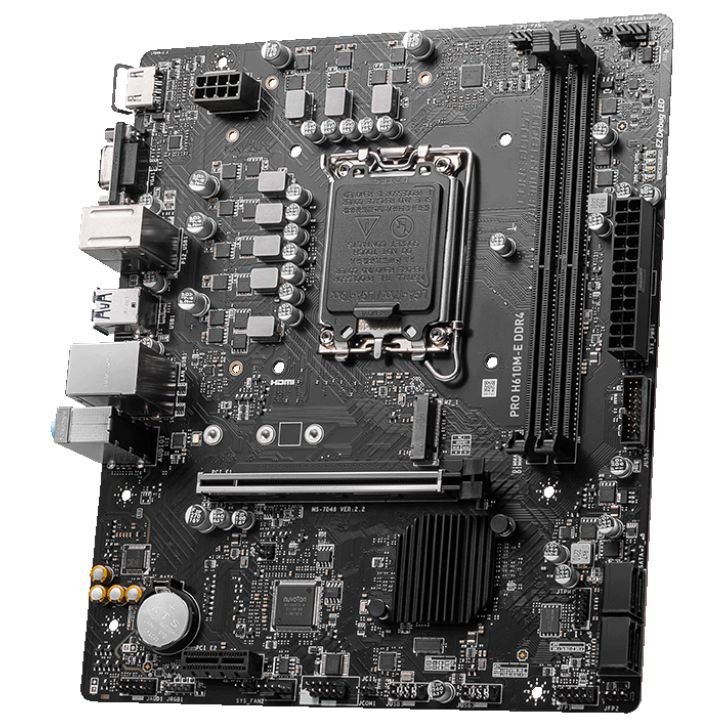

Model : PRO H610M-E DDR4
Form Factor : Mirco-ATX Form Factor (9.3 in. x 7.9 in. / 23.6 cm x 20 cm)
CPU :
- Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
- Processor socket LGA1700
*Please go to www.msi.com to get the newest support status as new processors are released.
Chipset : Intel® H610 Chipset
Onboard Graphics :
- 1 x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz * **
- 1 x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Audio :
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet :
- 1 x Realtek® RTL8111H 1Gbps LAN controller
Storage Interface :
- 4x SATA 6Gb/s ports (From H610 chipset)
- 1x M.2 slot (Key M) (from CPU) * **
* Supports up to PCIe 3.0 x4
** Supports 2242/ 2260/ 2280 storage devices
Expansion Slots :
- 1x PCIe x16 slot (From CPU)*
* Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot (From H610 chipset)**
** Supports PCIe 3.0 x1
Memory :
- 2 x DDR4 memory slots, support up to 64GB*
- Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
*Please refer to www.msi.com for more information on compatible memory.

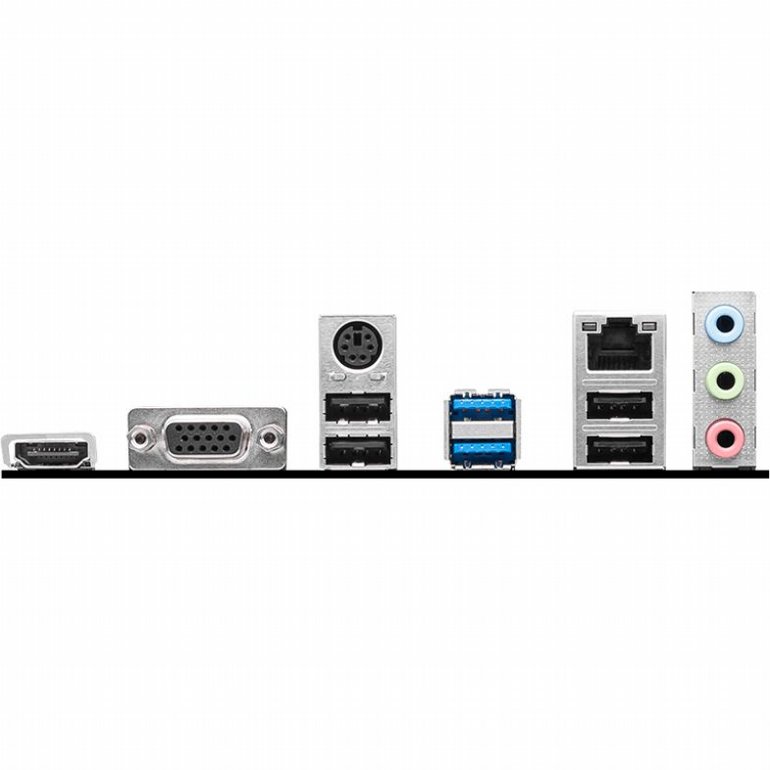

Back I/O Ports:
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
-Internal I/O Connectors-
- 1 x 24-pin ATX main power connector
- 1 x 8-pin +12V power connector
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors (From Hub-GL850G)
- Supports additional 4 USB 2.0 ports
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper
- 1 x 4-pin RGB LED connector
- 4 x EZ Debug LED
