-SPECS-
Warranty : 3 years
Brand : MSI
Model : PRO Z790-P WIFI DDR4
Form Factor : ATX (243.84mmx304.8mm)
CPU :
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- LGA 1700
Chipset : Intel® Z790
Onboard Graphics :
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
-Slots-
- 3x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory :
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Max. overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
-Storage Interface-
4 x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6 x SATA 6G
Ethernet :
1 x Intel® 2.5Gbps LAN
Wireless:
Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio :
- Realtek® ALC897 Codec7.1-Channel High Definition Audio

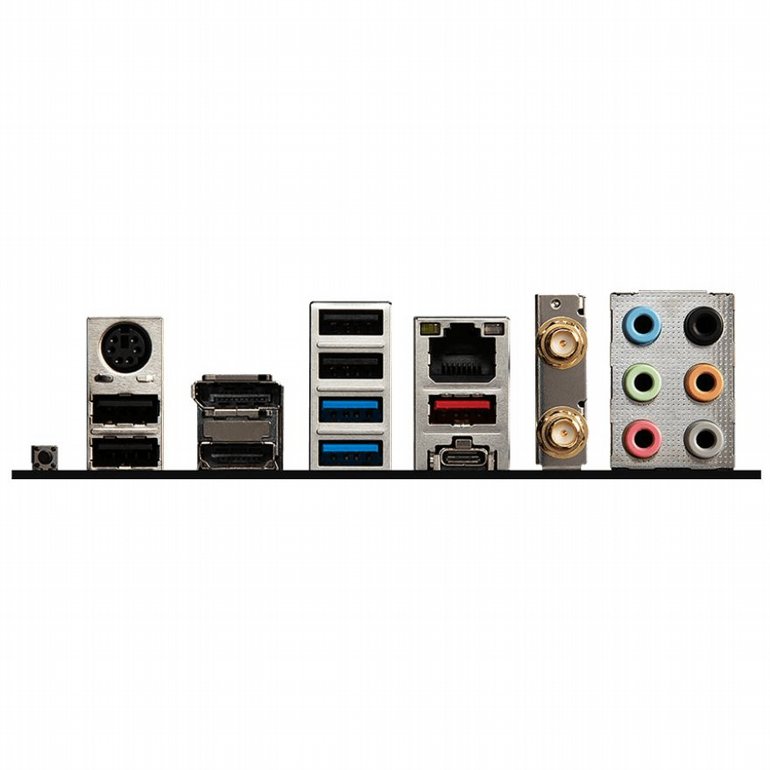

Back Panel I/O Ports :
- Keyboard / Mouse
- DisplayPort
- USB 2.0
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI™
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- USB 3.2 Gen 2 10Gbps (Type-A)
-Internal I/O Connectors-
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x TBT connector (JTBT, supports RTD3)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
