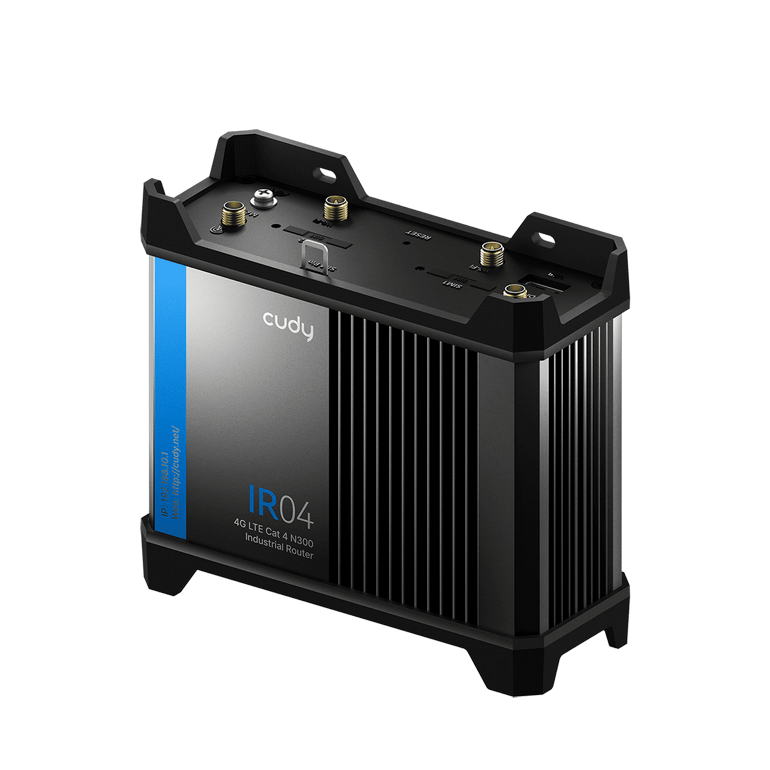

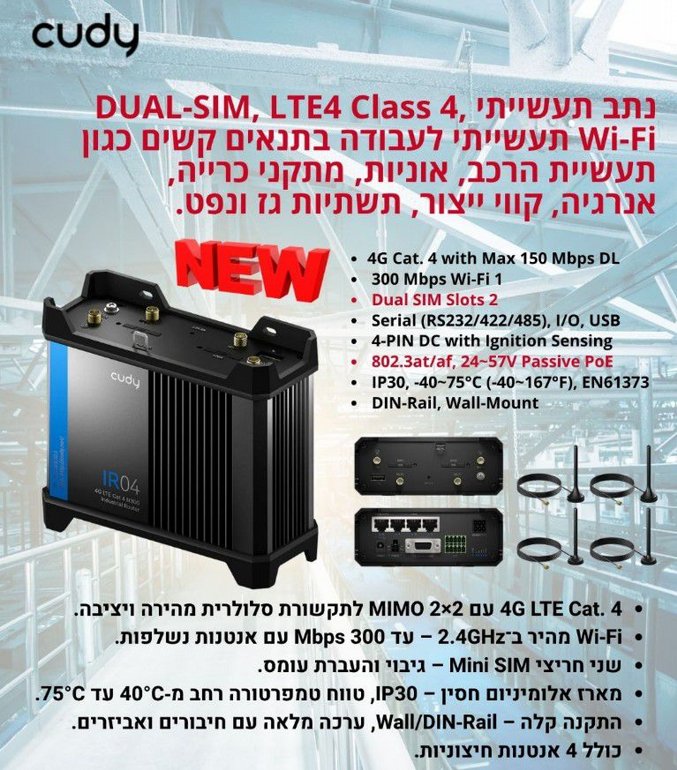

| Model Version |
IR04 1.0 |
|---|
| CPU |
CPU Details |
580 MHZ Single-Core, MIPS24KEC |
|---|
| Memory/Storage |
Flash/ROM |
16 MB (128 Mbit) NOR |
|---|
|
DDR/RAM |
128 MB (1 Gbit) DDR2 |
|---|
| Cellular |
Cellular Standards |
4G Cat. 4 |
|---|
|
Cellular Antennas |
2× Detachable |
|---|
|
Detachable Cellular Antennas Connector |
SMA Female |
|---|
|
SIM Options |
2× Mini SIM Slots (2FF) |
|---|
|
Available Versions |
EU, US, ME, LA |
|---|
| EU Version Cellular |
Suitable Region |
Europe, Middle East, Africa, SEA, Australia, New Zealand |
|---|
|
Max DL Speed |
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
|---|
|
Max UL Speed |
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) |
|---|
|
Advanced |
DL 2×2 MIMO |
|---|
|
Cellular Bands |
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8 |
|---|
| US Version Cellular |
Suitable Region |
United States, Canada |
|---|
|
Max DL Speed |
150 Mbps |
|---|
|
Max UL Speed |
50 Mbps |
|---|
|
Advanced |
DL 2×2 MIMO |
|---|
|
Cellular Bands |
LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5 |
|---|
| LA Version Cellular |
Suitable Region |
Latin America, Australia, New Zealand |
|---|
|
Max DL Speed |
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
|---|
|
Max UL Speed |
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) |
|---|
|
Advanced |
DL 2×2 MIMO |
|---|
|
Cellular Bands |
LTE-FDD: B1/2/3/4/5/7/8/28/66
LTE-TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8 |
|---|
| ME Version Cellular |
Max DL Speed |
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
|---|
|
Max UL Speed |
50 Mbps (LTE-FDD), 35 Mbps (LTE-TDD) |
|---|
|
Advanced |
DL 2×2 MIMO |
|---|
|
Cellular Bands |
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/8
GSM: B3/8 |
|---|
| Wireless |
2.4 GHz Wi-Fi Speed |
300 Mbps |
|---|
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|---|
|
Wi-Fi Antennas |
2× Detachable |
|---|
|
Detachable Wi-Fi Antennas Connector |
RP-SMA Female |
|---|
|
FEM or PA/LNA |
2.4 GHz: 2× Internal |
|---|
|
Range Performance |
Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|---|
|
Wall Performance |
One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'') |
|---|

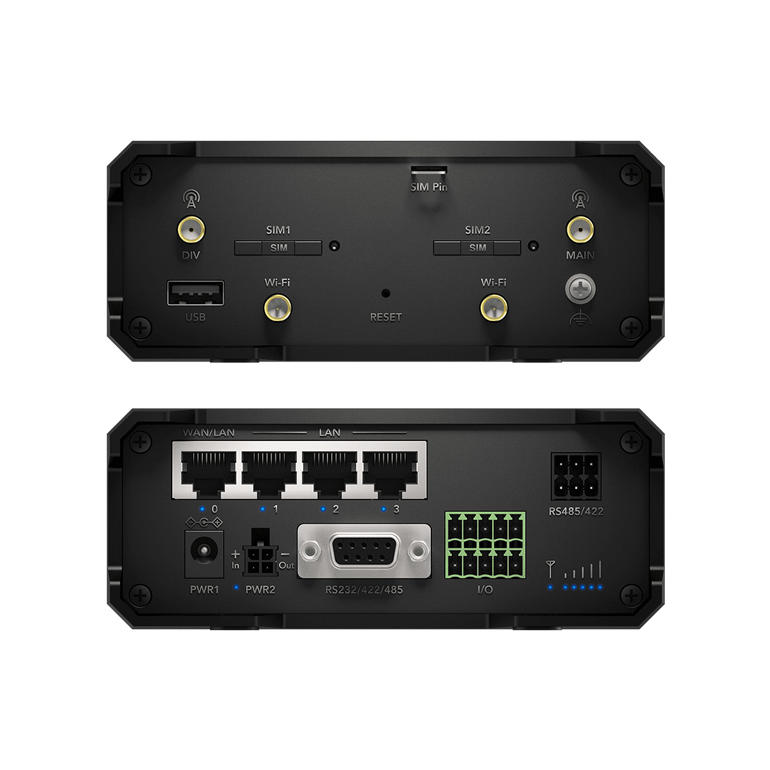

| Interfaces |
Physical Buttons |
Reset Button |
|---|
|
10/100 Mbps RJ45 Ports |
4 |
|---|
|
Ethernet Notes |
Port 1 is WAN/LAN configurable, and the rest are LAN ports |
|---|
|
USB Ports |
1× USB 2.0 |
|---|
|
Industrial Sockets |
- 1× DB9
- 1× 6-PIN
- 1× 10-PIN
|
|---|
|
DB9 Protocols |
|
|---|
|
6-PIN Industrial Socket Protocols |
|
|---|
|
IO |
- 1× Digital Dry Input (0-1.2V for state 1 | 1.8-3V for state 0) and GND1
- 1× Digital Galvanically Isolated Input (0-4V for state 0 | 9-30V for state 1) and GND2
- 1× Digital Open Collector Output (Max. 30V⎓250mA) and 1× GND3
- 1× +V (<30V) and GND 3 for External VCC for the Digital Output
- 1× C & NO - Common and Normally Open contacts of the internal Non-Latching Relay respectively (Max. 24V⎓4A or 40V~4A)
- 1× A and GND1 - ADC input. Analog voltage range: 0-24V. The input can be configured for 4-20 mA sensor protocol as current measurement (AcL)
|
|---|
|
Other IO |
1× Ignition Sensing and GND on the 4-PIN Power Connector |
|---|
|
LED |
- Power
- Cellular
- Cellular Signal Strength
- Link/ACT of Each Ethernet Port
|
|---|
|
Power Input |
- DC Jack
- PoE via Ethernet Port
- 4-PIN DC
|
|---|
|
Power Input Note |
Only two PINs in the 4-PIN power ports are used for powering. The other two are used for ignition sensing. |
|---|
| Power |
Power Methods |
- DC
- 802.3at/af PoE
- Passive PoE
|
|---|
|
Power Methods Note |
The WAN/LAN port accepts 802.3at/af PoE. The LAN ports accept Passive PoE. |
|---|
|
DC Input |
12V 1A |
|---|
|
DC Terminal Block Input |
11-57V⎓ |
|---|
|
Passive PoE Input |
24-57V, Max. 12W |
|---|
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
|---|
|
Max Power Consumption (W) |
9.6W |
|---|
|
Idle Power Consumption (W) |
2.8W |
|---|
| Reliability |
Grounding Methods |
Grounding Point |
|---|
|
EMC |
IEC/EN 61000-4-2, Level 3 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5
IEC/EN 61000-4-10, Level 5 |
|---|
|
Power Protection |
- Polarity Protection
- Overvoltage Protection
- Surge Protection
|
|---|
|
Shock |
IEC/EN 61373 |
|---|
|
Vibration |
IEC/EN 61373 |
|---|
|
Free Fall |
IEC/EN 60068-2-32 |
|---|
|
Safety |
IEC/EN 62368 |
|---|
|
Ingress Protection Rating |
IP30 |
|---|
|
Environment |
Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensing |
|---|
| Certifications |
FCC, CE |
|---|
| Mechanical |
Casing Material |
Aluminum Alloy |
|---|
|
Dimension |
Device:
129×114×50.6 mm
5.08×4.49×1.99 inches
Mounting Space:
164×130×52 mm
6.46×5.12×2.05 inches |
|---|
|
Product Weight |
462.0 g (16.3 oz.) |
|---|
|
Installation |
|
|---|

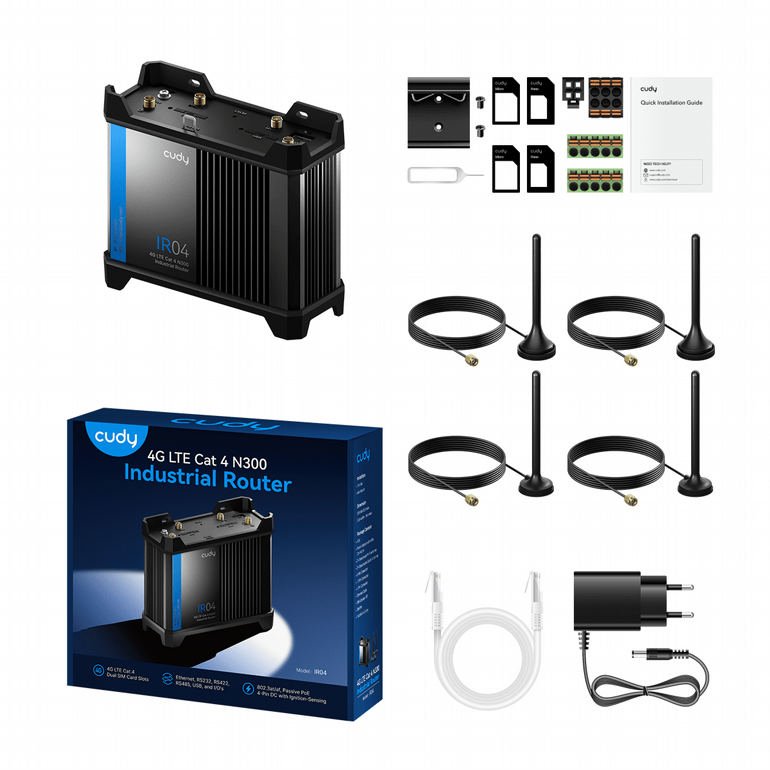

| Package Content |
- IR04
- Power Adapter
- Detachable Wi-Fi Antennas
- Detachable Cellular Antennas
- 6-PIN Connector
- 10-PIN Connector
- 4-PIN Connector
- Ethernet Cable
- SIM Adapter KIT
- Mounting Kit
- Installation Guide
|
|---|
| Ordering Information |
Retail Package Weight |
EU: 935.0 g (32.98 oz.) |
|---|
|
Retail Package Dimension |
220×200×60 mm
8.66×7.87×2.36 inches |
|---|
|
Units per Carton |
10 |
|---|
|
Carton Net Weight |
EU: 9.4 kg (20.72 lbs) |
|---|
|
Carton Gross Weight |
EU: 10.0 kg (22.05 lbs) |
|---|
|
Carton Dimension |
48.5×31.9×22.4 cm
19.09×12.56×8.82 inches |
|---|
