-We are happy to introduce the all-new iON Series motors designed from the ground up! We are committed to providing performance and efficient products to all our customers!
- The bell and base are milled from 7075-grade aluminum with a unique design featured counter-sunk heat-dispatch holes into the bell.
- Durability was a high concern for us since we understand our customers are out often using their quadcopters and occasionally crashing them. For this reason, the ION series motor made with only the best materials, The ION motor went through extensive and rough testing to ensure its ability to withstand some of the worst crashes! The iON motor offers incredible power, efficiency, and torque.
- A 420 steel hollow shaft extends through the center of the motor for maximum strength as well as being light and durable. At the base of the shaft is a screw which makes bell removal and motor cleaning super easy. No more c clips shooting across the field and disappearing into the grass or into your girlfriend's right eye.
Features
-7075 milled aluminum Bell and Base
-NMB Japan 4mm bearings
-High-temperature magnets and windings
-N52H Arc Magnets
-Hex bolt shaft set screw
-Dynamically balanced
-Single strand wounded,
Specifications
KV: 2100
Configuration: 12N14P
Shaft Diameter: 4mm
AWG: 18#
Internal Resistance: 44mΩ
Motor Dimensions (Dia.*Len): Φ30.9×18.5mm

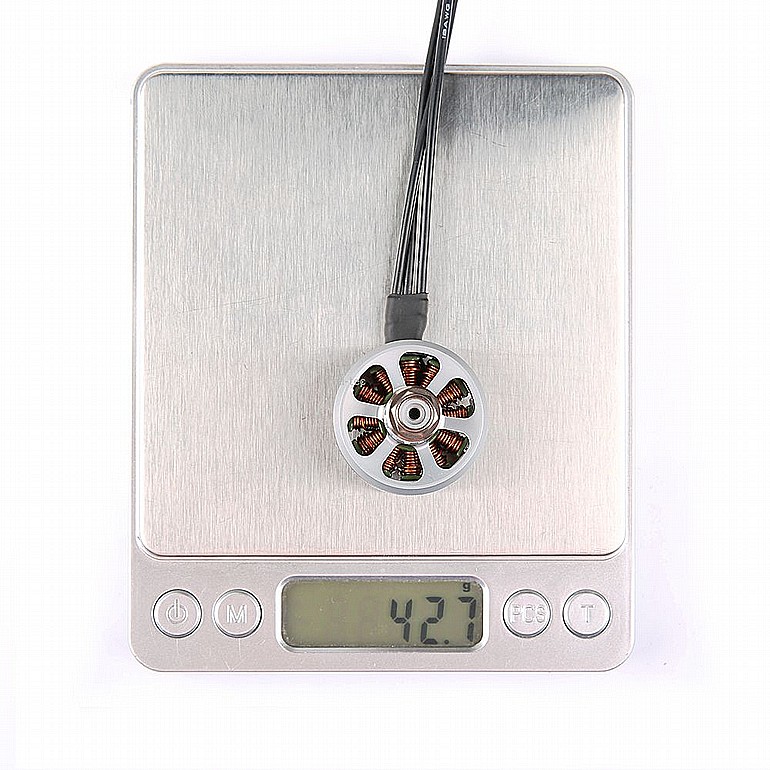

Weight with wires(g): 42.7g
ldle current@10v(A): 1.7A
No.of Cells(Lipo): 3-4S
Max Continuous Power 180s: 418W
Max Continuous Current 180s: 34.5A
Cable length: 150mm
