-Official product page link-
Unlocked for Overclocking : Yes
-SPECS-
Warranty : 2 years

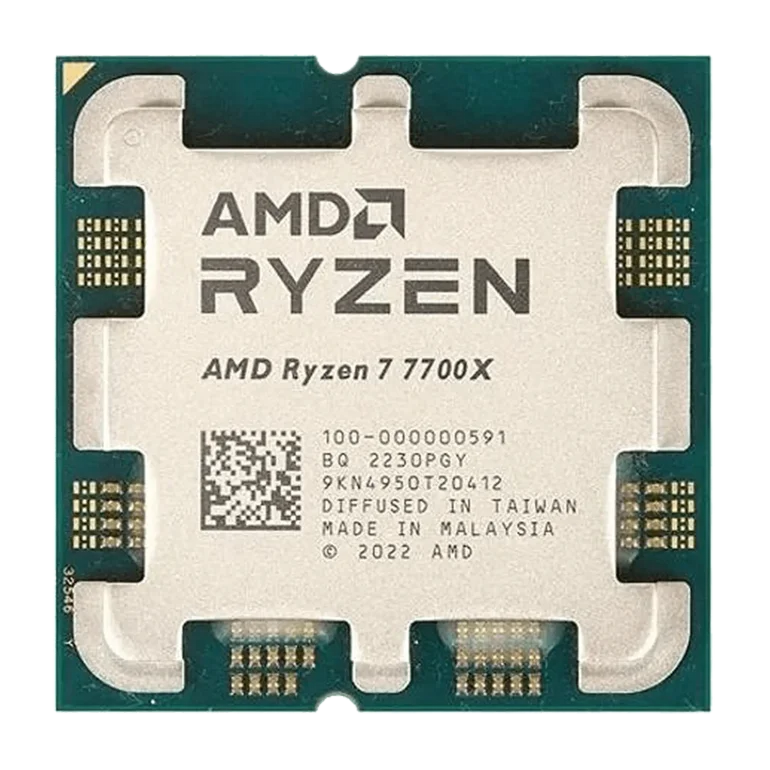

AMD Ryzen™ 7 7700X is a dominant gaming desktop processor that comes with 8 CPU cores, 16 threads, and a max boost clock speed of up to 5.4GHz.
Brand : AMD
Model : AMD Ryzen 7 7700X
Type : Tray Processor
Socket : AM5
Product Line : AMD Ryzen™ processor for desktops.
Market Segment : Enthusiast Desktop
Architecture : Zen 4
-Specifications-
# of CPU Cores : 8
# of Threads : 16
Base Clock : 4.5GHz
Max. Boost Clock : Up to 5.4GHz
Default TDP : 105W
L1 Cache : 512KB
L2 Cache : 8MB
L3 Cache : 32MB
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size :L 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Connectivity
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
ECC Support : Yes (Requires mobo support)
Graphics
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes
OS Support :
- Windows 11 - 64-Bit Edition
- Windows 10 - 64-Bit Edition
- RHEL x86 64-Bit
- Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
