ñô÷ ëç ìîçùá ðééç Gamdias HELIOS P1A-850G - 850W Gold

-Official product page link-


HELIOS P1A-850G Fully Modular

POWERFUL. EFFICIENT. STABLE.
• Fully Modular
• 850W 80 Plus Gold
• High Quality Capacitors
• 120mm Hydraulic Bearing Fan
• Compatible with ATX12V v2.52
• Support C6/C7 Power State
• Automatic Fan Speed Optimizing According to Temperature
• Full DC-DC, LLC Resonant Circuit Design
• Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP
SPECIFICATIONS


POWERFUL. EFFICIENT. STABLE.

The HELIOS P1A-850G Fully Modular PSU delivers a stable output of up to 90% efficiency and reduces power consumption. It features black flat cables for easy installation and cable management and is equipped with high-quality capacitors and a hydraulic bearing fan to perform reliably at top conditions.
80 PLUS GOLD CERTIFIED

With an 80 PLUS GOLD certification, the unit guarantees stable power output at up to 92% efficiency at 50% load while reducing considerable power consumption.
SMART HYDRAULIC FAN

Equipped with a 120mm hydraulic bearing fan, the PSU ensures silent and stable operations for long durations. The fan also features automatic fan speed optimization, enabling the fan speed to be adjusted based on the detection of temperature and load.
LLC RESONANT CIRCUIT LAYOUT

Made with DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.

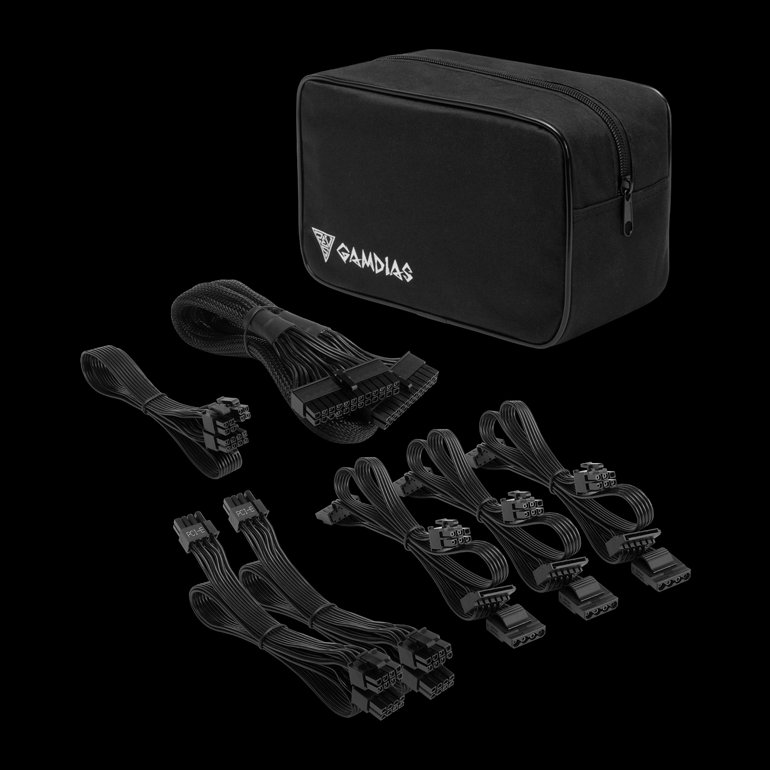

FLAT BLACK CABLES

The sleek and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.
FULLY MODULAR

The HELIOS P1A-850G Fully Modular PSU allows users to connect essential cables for easy installation and offers a larger room for cable management.
HEAVY-DUTY PROTECTION

This PSU offers complete protection, meeting full demands to help the system operate safely and stably.





SPECIFICATIONSkeyboard_arrow_right
Model
HELIOS P1A-850G Fully Modular

POWERkeyboard_arrow_right
Type : ATX12V v2.52
Efficiency : Meet 80 PLUS Gold efficiency
Power Factor Correction : APFC with PF value of 0.99
Support MB Sync : No
Dimension (L x W x H) : 140 x 150 x 86 mm
Support C6/C7 power state : Yes
AC Input : 100-240V~ / 12-8A / 50-60Hz
DC Output : +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current : 22A / 22A / 70.8A / 0.3A / 3A
Max. Output Power : 120W / 850W / 3.6W / 15W
Total Power : 850W
Peak Power : 1105W
Protection : OVP / UVP / OPP / SCP / OCP / OTP
Main Power : 1 (24 Pin)
CPU : 1 (4+4 Pin)
PCI-E : 4 (6+2 Pin)
SATA : 6 (5 Pin)
Molex : 3 (4 Pin)
Modular : Fully Modular
Flat Cable : Yes
Cooling System : 120mm hydraulic bearing fan
Silent Mode : No
DC to DC : Yes
Environmental Compliance : Erp Lot 6
