Brand : MSI
Model : MPG A1000G PCIE5
-OVERVIEW-
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

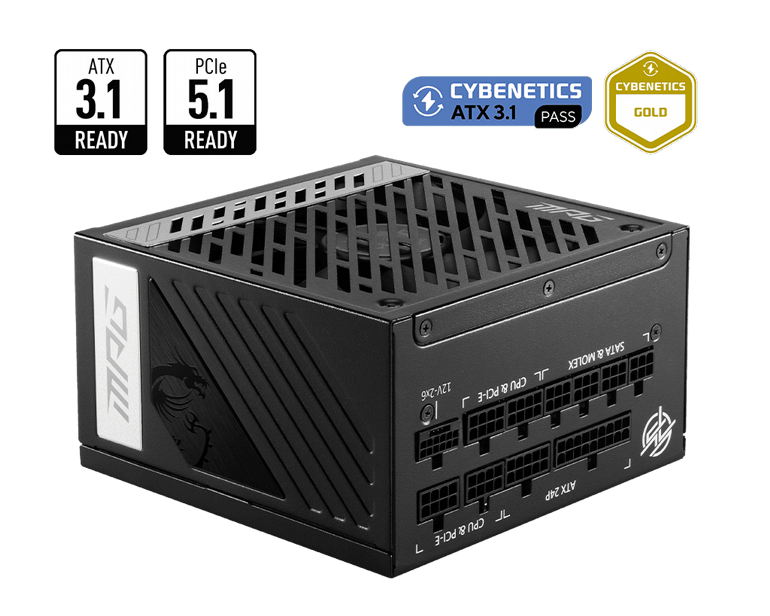

ATX 3.1 READY
It has an output port that is compliant with PCIe 5.1 and Intel PSDG (Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
level up your GAME
With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
.
SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
0% RPM Mode
The fan 0 RPM mode can stop fan`s operation when TDP is below 40% to help with energy saving and providing silence.
Fluid dynamic bearing
This power supply`s fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noice level.
SAFETY & RELIABILITY
The power supply is here to provide your system a worry free operation under all loadings.
HOW TO PROPERLY CONNECT THE 16 PIN CABLE

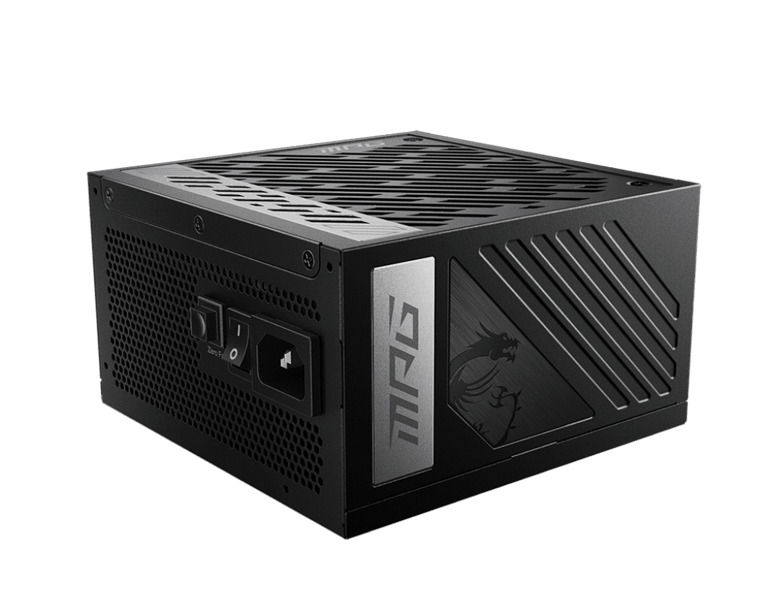

MPG A1000G PCIE5
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards

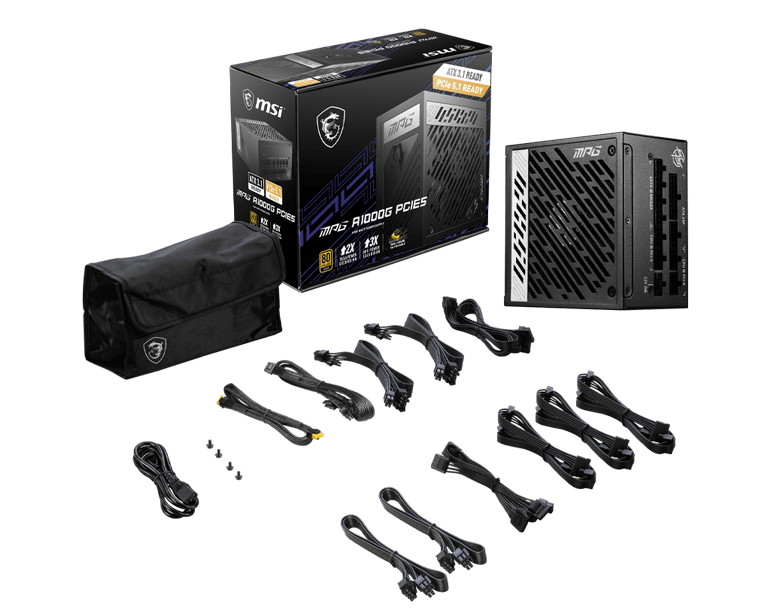

- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
-Specifications-
Efficiency Rating : 80PLUS Gold (Up to 90%)
Modular : Yes (fully modular).

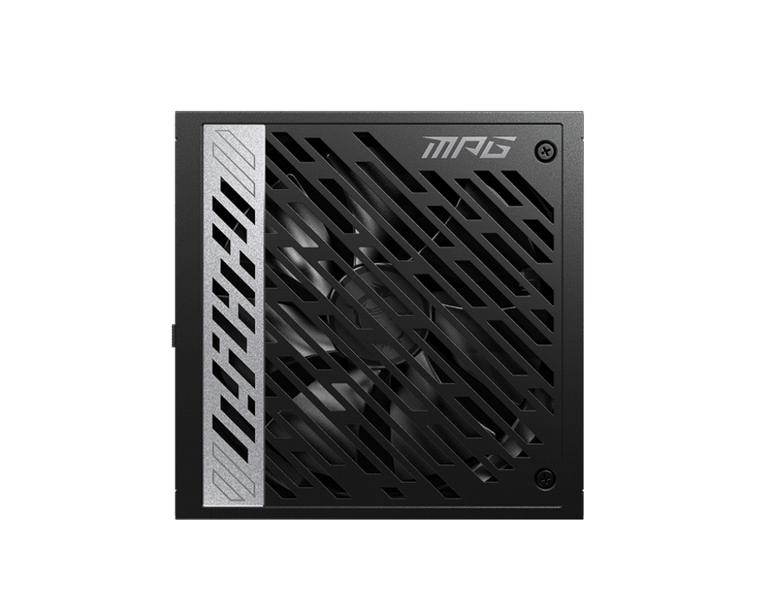

Fan size : 135mm.
Fan Bearing : Fluid Dynamic Bearing.
Dimensions (DxWxH): 150 x 150 x 86 mm
PFC Type : Active PFC.
Input Voltage Range : 100~240 VAC
Power Watt : 1000W
Power excursion : 2000W (*up to 200% of the PSU's rated power for 100μs)
Input frequency range : 50~60Hz
Portection : OCP / OVP / OPP / OTP / SCP / UVP

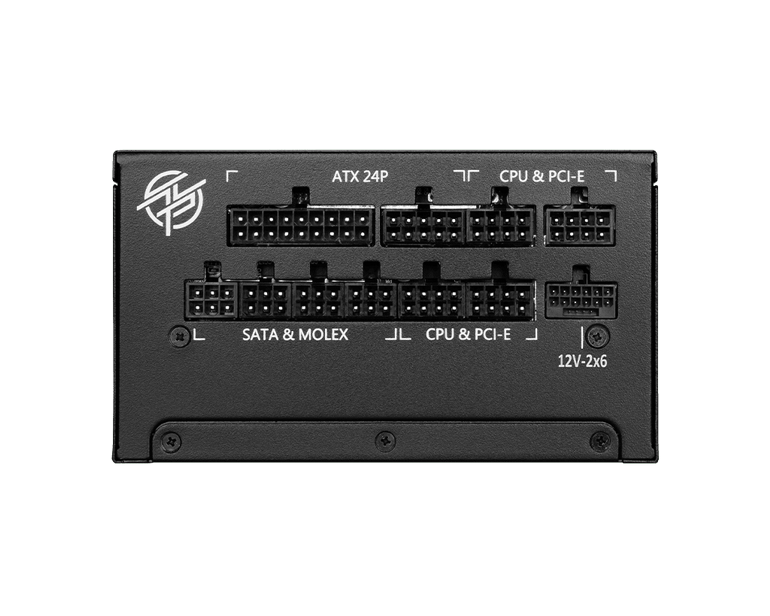

ATX (24 pin) : 1
EPS (4+4 pin) : 2
PCI-E 5.0 (16 pin) : 1 (600W)
PCI-E (6+2 pin) : 6
SATA (15 pin) : 12
PERIPHERAL (4 pin) : 4
-SPECS-
DC output :
3.3V : 22A / 120W+
5V : 22A / 120W+
12V : 83.5A / 1000W+
12V : 0.3A / 3.6W-
5Vsb : 3A / 15W+
