-OVERVIEW-

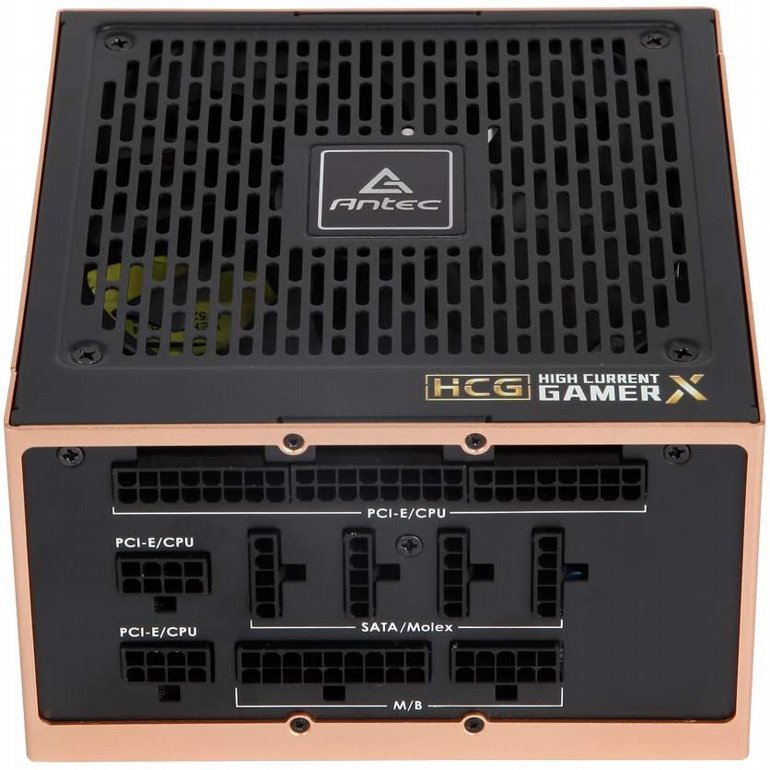

Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Extreme power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.
-FEATURES-
- Guaranteed 1000W of Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

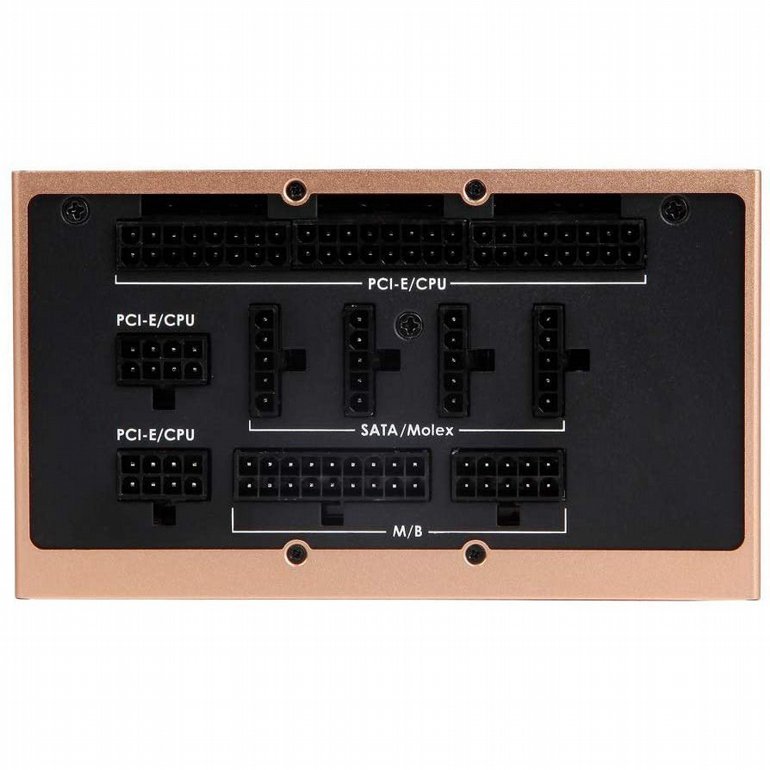

- 16 pin Socket－Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- Antec Quality 10-year warranty and lifetime global 24/7 support

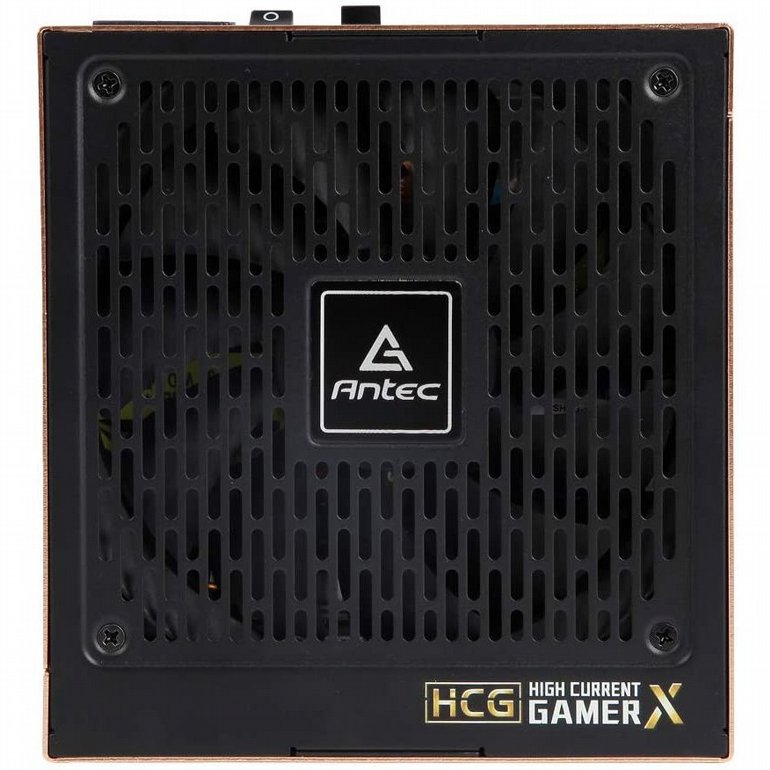

- 135mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

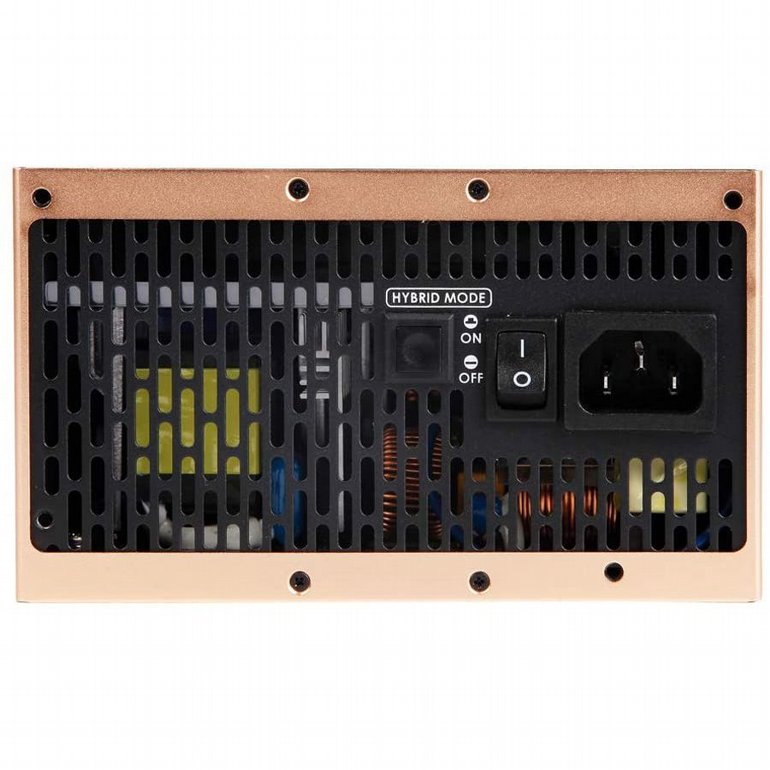

- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
-SPECS-

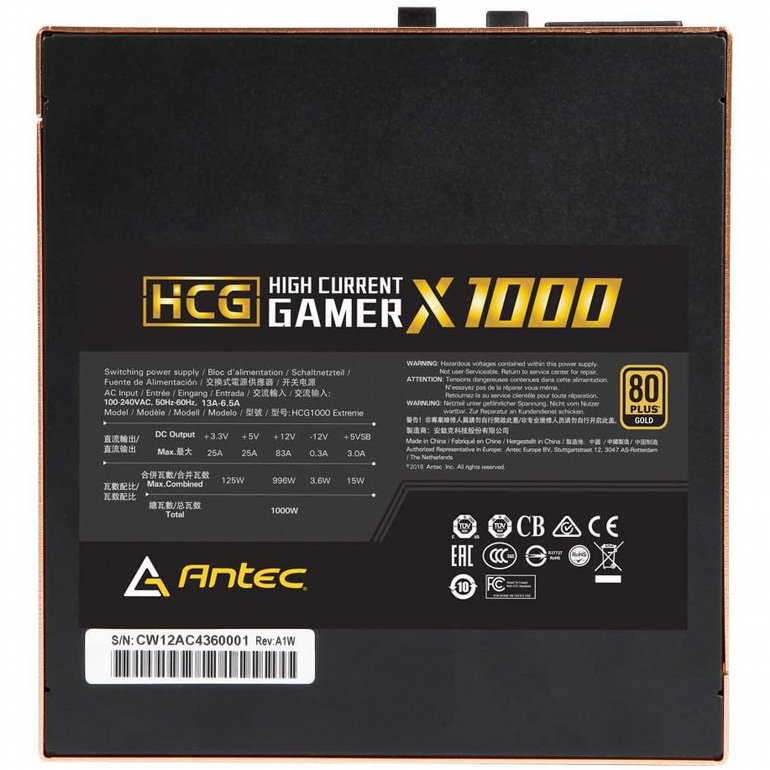

Warranty : 3 Years
Brand : Antec
Series : High Current Gaming
Model : HCG1000 Extreme
Output Capacity : 1000W
Modular : Fully Modular
Certifications : 80 Plus Gold
Fan : 135mm FDB Fan
Type : ATX 12V 2.4
Dimension (W x L x H) : 160(L) x 150(W) x 86(H)
Net Weight : 1.66 Kgs
Gross Weight : 3.40 Kgs
Input Voltage : 100-240 VAC ±10%
Input Current : 13A-6.5A
Input Frequency Range : 50Hz-60Hz
PFC : Active PFC (>0.9 typical)
Power Good Signal : 100-500ms
Efficiency : 92% Typically
Protection : OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Regulatory : cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR

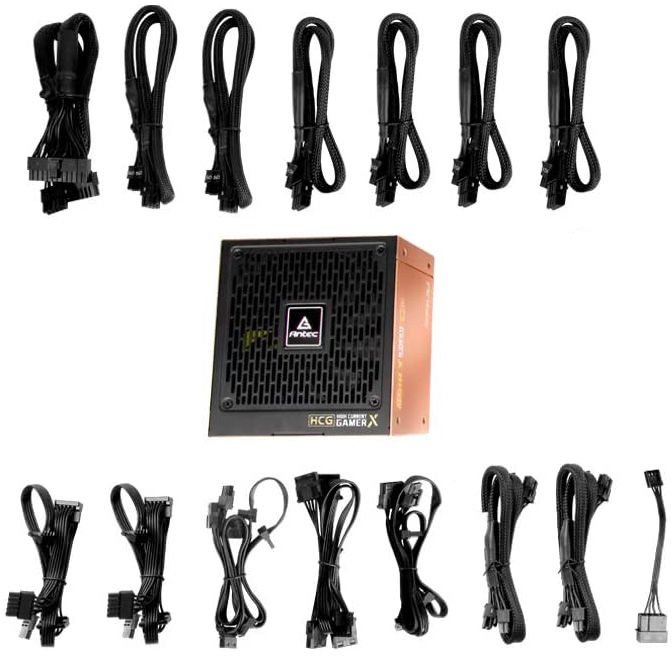

Connectors :
- 1 x MB 24(20+4) Pin
- 2 x 8(4+4) Pin EPS 12V
- 8 x 8(6+2) Pin PCI-E
- 12 x SATA
- 6 x Molex
- 1 x FDD
