שלדה לרחפן מירוץ - DOVE LITE V3 5‘’ FPV Race Frame

DOVE LITE V3 now is new optimize with some modern race feature, It's a trend by offering a small footprint light weight race frame without compromise the strength, adopt the popular Stretch X configuration, it fits both 30.5x and 20x stacks building options.

What has been upgraded in V3？

1. Bottom and Upper plates are changed to 2mm.

2. 3-hole Motor screw lock on the arms.

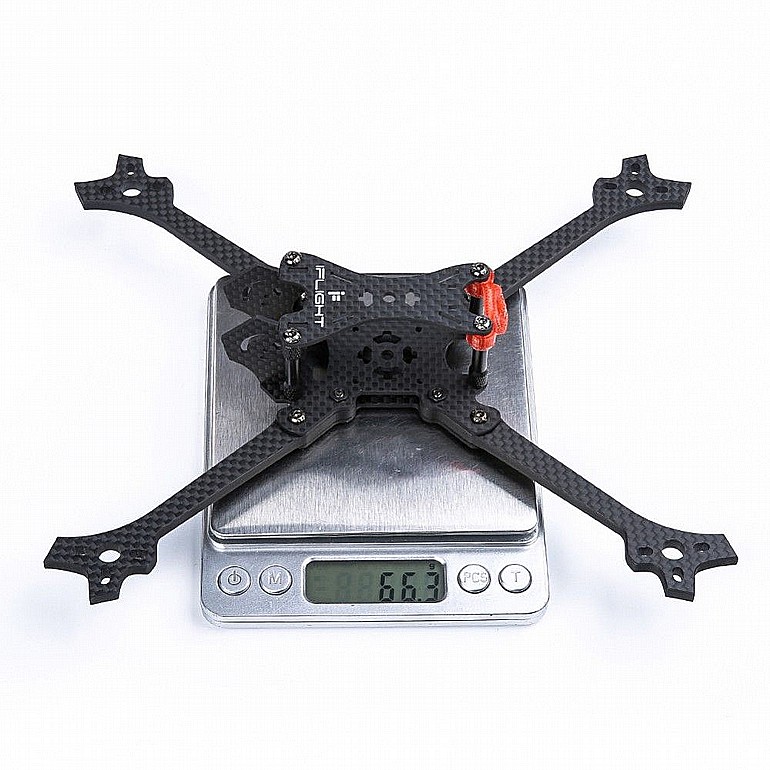

3. 65 grams without compromise strength

Features:

- Super lightweight (airframe weighs 65g only)

- Chamfered & 45°cut 3K carbon makes the frame extra strong

- Super durable 5mm thick Arms

- Popular Stretch X configuration

- 20*20,30.5*30.5 mount holes for all flight controllers

- Compact & easy repairing design

Specifications:

- Frame wheelbase: 218mm

- Frame weight: 65g approx

- Standoff Height: 28mm

- 5mm Arm thickness,7mm width,1.5mm vertical side plates

- The distance between vertical side plates: 19mm

- The distance between the top and upper plates: 25mm

- 2mm top, 2mm upper & 2mm bottom plate

- Mounting Holes: 20*20,30.5*30.5mm

Recommended parts(not included):

- Flight controller: SucceX F4/F7 Compatible controller

- Motor: XING 22XX or bigger size Motor

- Propeller: Max 5.1 inch propeller

- Camera: Micro Cameras(19mm width)

- Battery: 4S-6S Lipo battery

Package Included:

- 1pc *  Dove LITE V3  FPV Race Frame

- 1pc * Antenna mount
