The FrSky Taranis X9D Plus 2019 is a re-designed version with additions like an additional momentary button placed on the top left shoulder making it ergonomically friendly for DLG pilots to activate launch mode, and features a program scroll wheel making it even easier to navigate the menus. The upgraded MCU is used in conjunction with a re-designed mainboard that further increases the computing capability and increases the data storage. The upgrades not only improve the running of LUA scripts, it also optimizes overall performance like voice speech outputs.
The 2019 version uses the latest ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency with a high-speed module digital interface. Along with the new spectrum analysis function added to the OpenTX firmware, it is now possible to check the airwaves for RF noise. This version will give you a further improved experience based on the classic Taranis remote control. Additionally, tons of extra upcoming features that ACCESS brings will make this an ideal transmitter for any skill level.
The SE 2019 version is installed with the upgraded switches and M9 hall sensor gimbals and features the addition of a PARA wireless trainer function which makes them compatible with the FrSky Free Link App and AirLink S.
***Pls.be noted:
The X, XM, RX, GX series receivers can be gradually upgarded to ACCESS protocol. It includes XM, RXSR, RX4R, RX6R, G-RX6, G-RX8, XM Plus, and R9 series. For more details about ACCESS, pls. visit: https://www.frsky-rc.com/frsky-advanced-communication-control-elevated-spread-spectrum-access-protocol-release/
SPECIFICATIONS
- Dimension: 200*194*110mm (L*W*H)
- Weight: 700g (without battery)
- Operating system: OpenTX
- Number of channels: 24 channels
- Internal RF module: ISRM-S-X9
- Operating voltage range: 6.5 - 8.4V
- Operating current: 130mA@8.2V (Typ)
- Operating Temperature: -10℃ ~ 60℃ (14℉ ~ 140℉ )
- Backlit LCD resolution: 212*64
- Smart Port, Micro SD card slot and DSC Port
- Mini USB interface: supports 2S Li-battery balancing charge
- Model memories: 60 models (expandable by Micro SD card)
- Compatibility: ACCST D16 and ACCESS receivers
FEATURES
- Classic Taranis form factor design
- Easy launch momentary button
- Program navigation button
- High-speed module digital interface
- Installed with ACCESS protocol
- Supports spectrum analyzer function
- Supports SWR indicator warning
- Haptic vibration alerts and voice speech outputs
- Supports wired training function
- Supports PARA wireless training function
- Compatible with FrSky Free Link App and AirLink S via mobile devices
- M9 hall sensor gimbal and upgraded switches
Includes
- 1 x X9D Plus SE 2019 Radio Controller
- 1 x Manual
- 1 x Sticker
- 1 x Back Strap
- 1 x eva case
Comparisom List
|
|
Taranis X9D Plus 2019
|
Taranis X9D Plus SE 2019
|
|
Operating System
|
OpenTX
|
OpenTX
|
|
Communication Protocol
|
ACCST D16 /ACCESS
|
ACCST D16 /ACCESS
|
|
High-speed Module Digital Interface
|
√
|
√
|
|
SWR Indicator Warning
|
√
|
√
|
|
Spectrum Analyzer Function
|
√
|
√
|
|
Program Navigation Button
|
√
|
√
|
|
Easy Launch Momentary Button
|
√
|
√
|
|
Haptic Vibration Alerts
|
√
|
√
|
|
Voice Speech Outputs
|
√
|
√
|
|
2S Li-Battery Charging System
|
√
|
√
|
|
G9D Potentiometer Gimbal
|
√
|
|
|
M9 Hall Sensor Gimbal
|
|
√
|
|
Upgraded Switches
|
|
√
|
|
Wired Training System
|
√
|
√
|
|
PARA wireless training function
- PARA High-speed training system with a lower latency
- Compatible with FrSky Free Link App and AirLink S via mobile devices
|
|
√
|

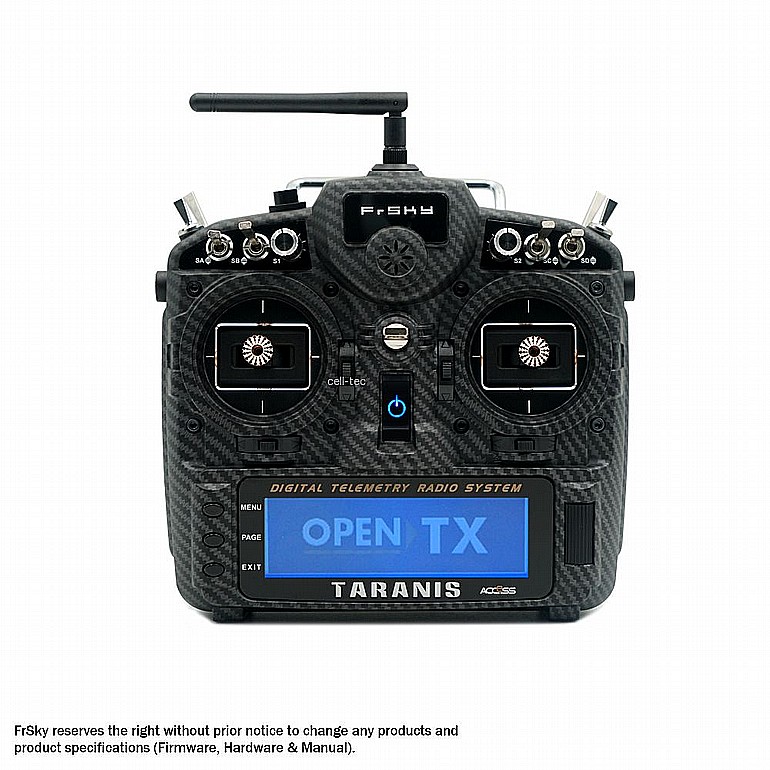

FrSky Taranis X9D Plus SE 2019 24CH ACCESS ACCST D16 M9 Hall Sensor Gimbal PARA Wireless Training Function Transmitter for RC Drone
OVERVIEW:
The FrSky Taranis X9D Plus 2019 is a re-designed version with additions like an additional momentary button placed on the top left shoulder making it ergonomically friendly for DLG pilots to activate launch mode, and features a program scroll wheel making it even easier to navigate the menus. The upgraded MCU is applied to a re-structured mainboard that further increase the compute capability and extend the storage resource of data, the upgrades not only in favor of the running of LUA script, and also optimize the overall performance like voice speech outputs.
The 2019 version uses the latest ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency with a high-speed module digital interface. Along with the new spectrum analysis function added to the OpenTX firmware, it is now possible to check the airwaves for RF noise with an accurate SWR indicator. This version will give you the further improved experience based on the classic Taranis remote control. Additionally tons of extra upcoming features that ACCESS brings will make this an ideal transmitter for any skill level.
The SE 2019 version is installed with the upgraded switches and M9 hall sensor gimbals, and features the addition of a PARA wireless trainer function which makes them compatible with the FrSky Free Link App and AirLink S.
Note: The X, XM, RX, GX series receivers can be gradually upgarded to ACCESS protocol. It includes XM, RXSR, RX4R, RX6R, G-RX6, G-RX8, XM Plus, and R9 series. For more details about ACCESS, pls. visit: https://www.frsky-rc.com/frsky-advanced-communication-control-elevated-spread-spectrum-access-protocol-release/
SPECIFICATIONS:
Brand: FrSky
Item name: X9D Plus SE 2019 Transmitter
Dimension: 200*194*110mm (L*W*H)
Weight: 670g (without battery)
Operating system: OpenTX
Number of channels: 24 channels
Internal RF module: ISRM-S-X9
Operating voltage range: 6.5 - 8.4V
Operating current: 130mA@8.2V
Operating Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉ )
Backlit LCD resolution: 212*64
Smart Port, Micro SD card slot and DSC Port
Micro USB interface: supports 2S Li-battery balancing charge
Model memories: 60 models (expandable by Micro SD card)
Compatibility: ACCST D16 and ACCESS receivers

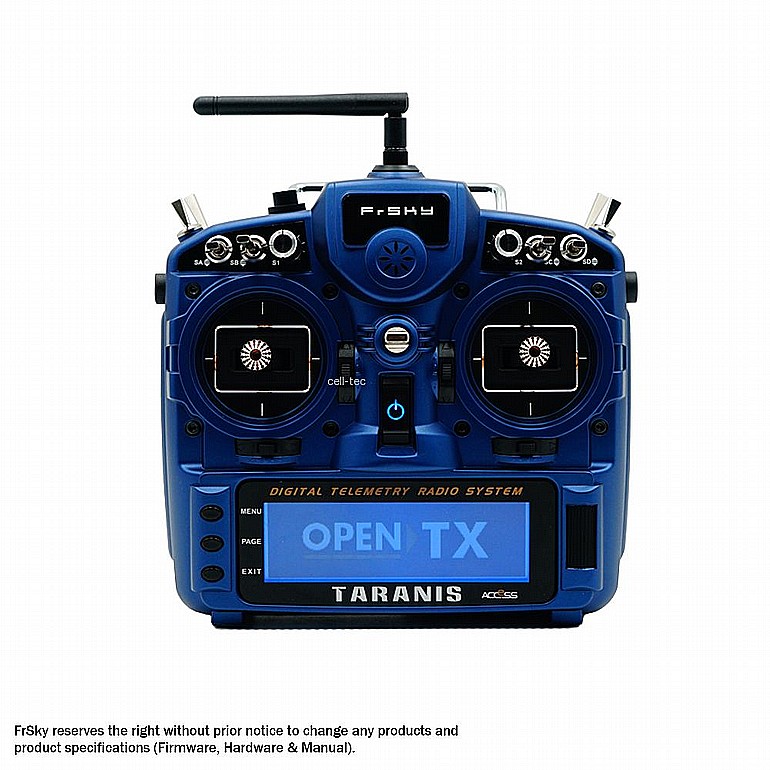

Color: Night Blue/Carbon Fiber
FEATURES:
M9 hall sensor gimbal and upgraded switches
Classic Taranis form factor design
Program navigation button
High-speed module digital interface
Easy launch momentary button
Installed with ACCESS protocol
Supports spectrum analyzer function
Accurate SWR indicator
Haptic vibration alerts and voice speech outputs
Supports wired training function
Supports PARA wireless training function
Compatible with FrSky Free Link App and AirLink S via mobile devices
Comparisom List:
| |
Taranis X9D Plus 2019 |
Taranis X9D Plus SE 2019 |
| Operating System |
OpenTX |
OpenTX |
| Communication Protocol |
ACCST D16 /ACCESS |
ACCST D16 /ACCESS |
| High-speed Module Digital Interface |
√ |
√ |
| Accurate SWR indicator |
√ |
√ |
| Spectrum Analyzer Function |
√ |
√ |
| Program Navigation Button |
√ |
√ |
| Easily Launch Momentary Button |
√ |
√ |
| Haptic Vibration Alerts |
√ |
√ |
| Voice Speech Outputs |
√ |
√ |
| 2S Li-Battery Charging System |
√ |
√ |
| G9D Potentiometer Gimbal |
√ |
|
| M9 Hall Sensor Gimbal |
|
√ |
| Upgraded Switches |
|
√ |
| Wired Training System |
√ |
√ |
PARA wireless training function
-PAPA High-speed training system with a lower latency
-Compatible with FrSky Free Link App and AirLink S via mobile devices |
|
√ |
Package Included: 1 x X9D Plus SE 2019 Transmitter
